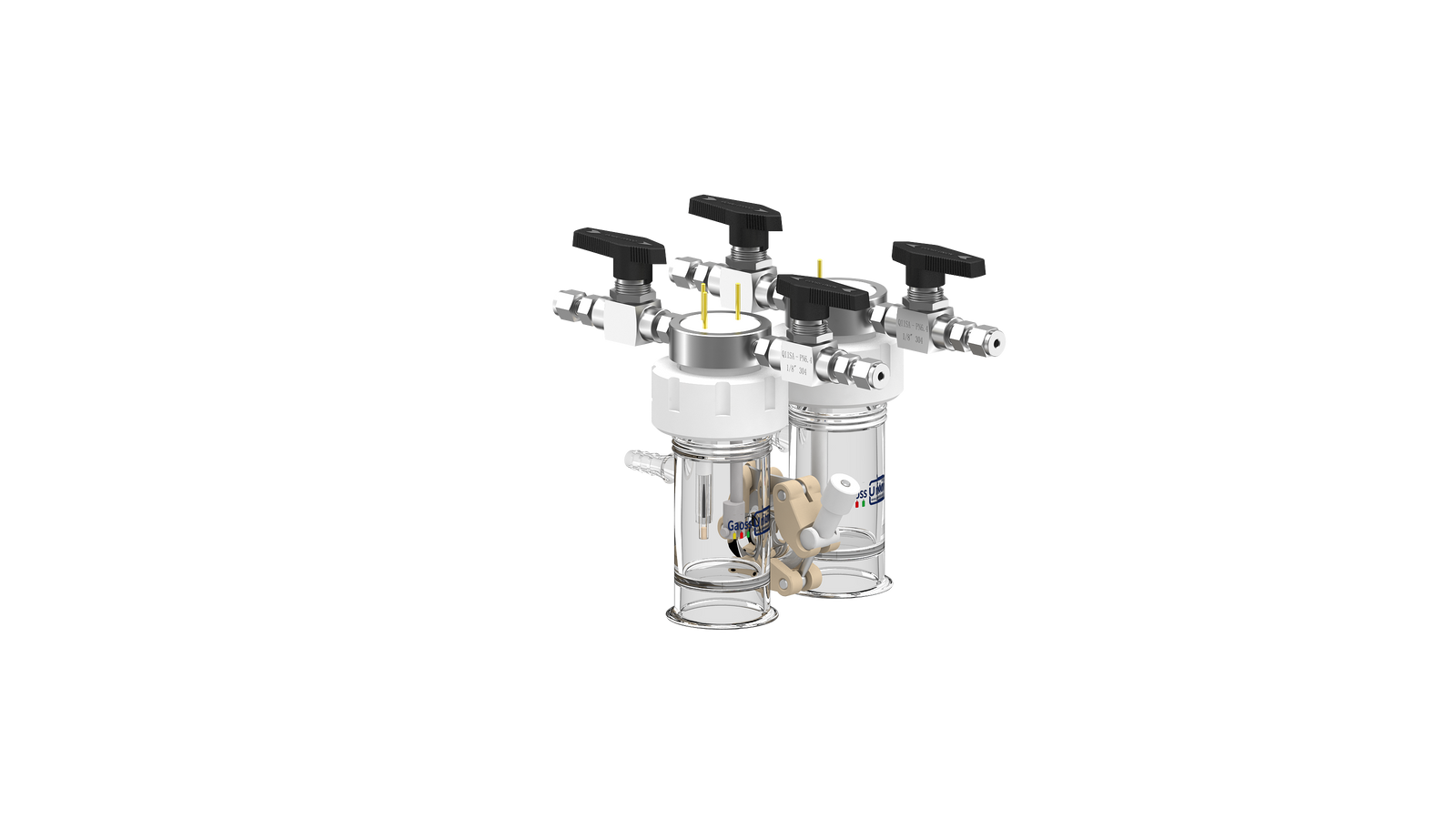

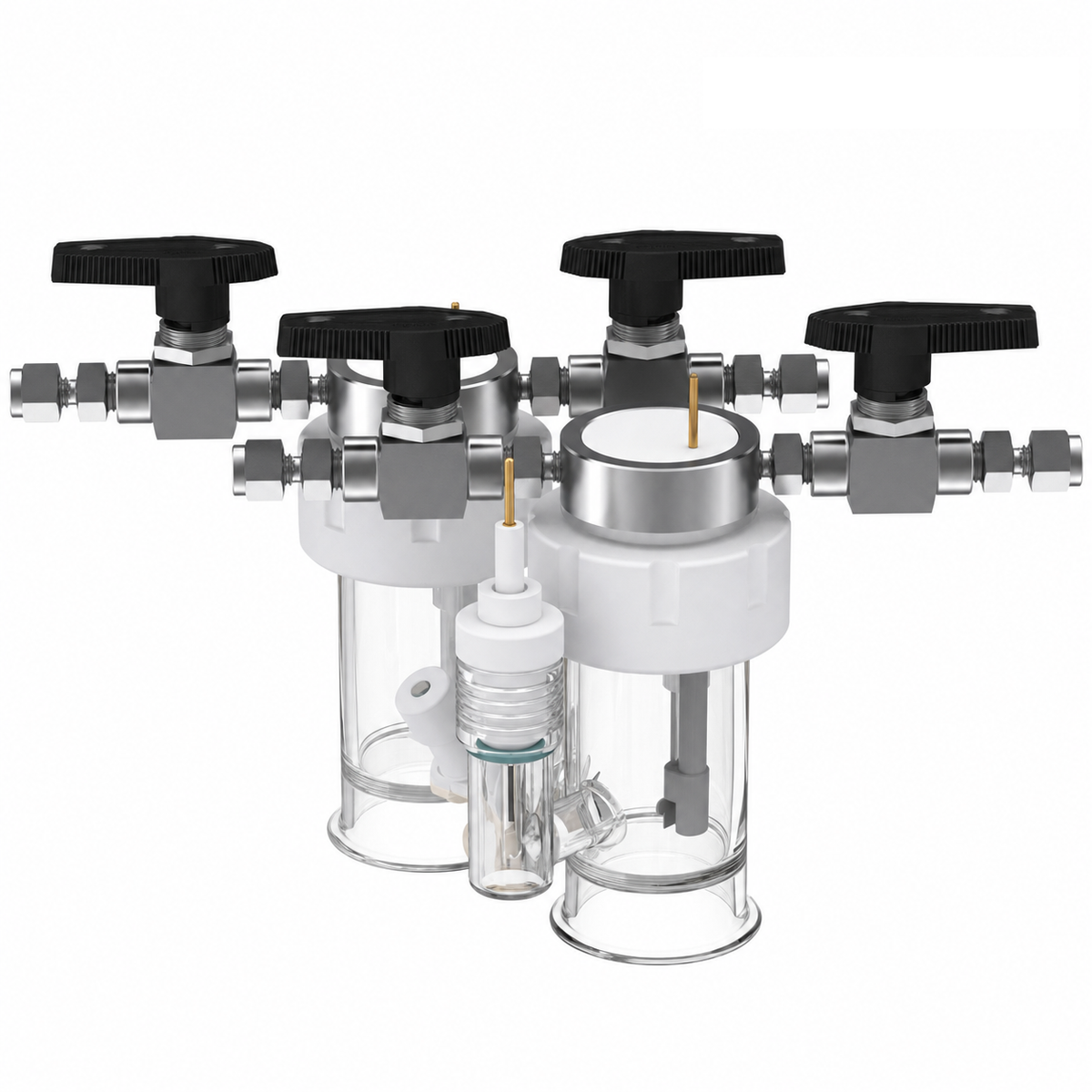

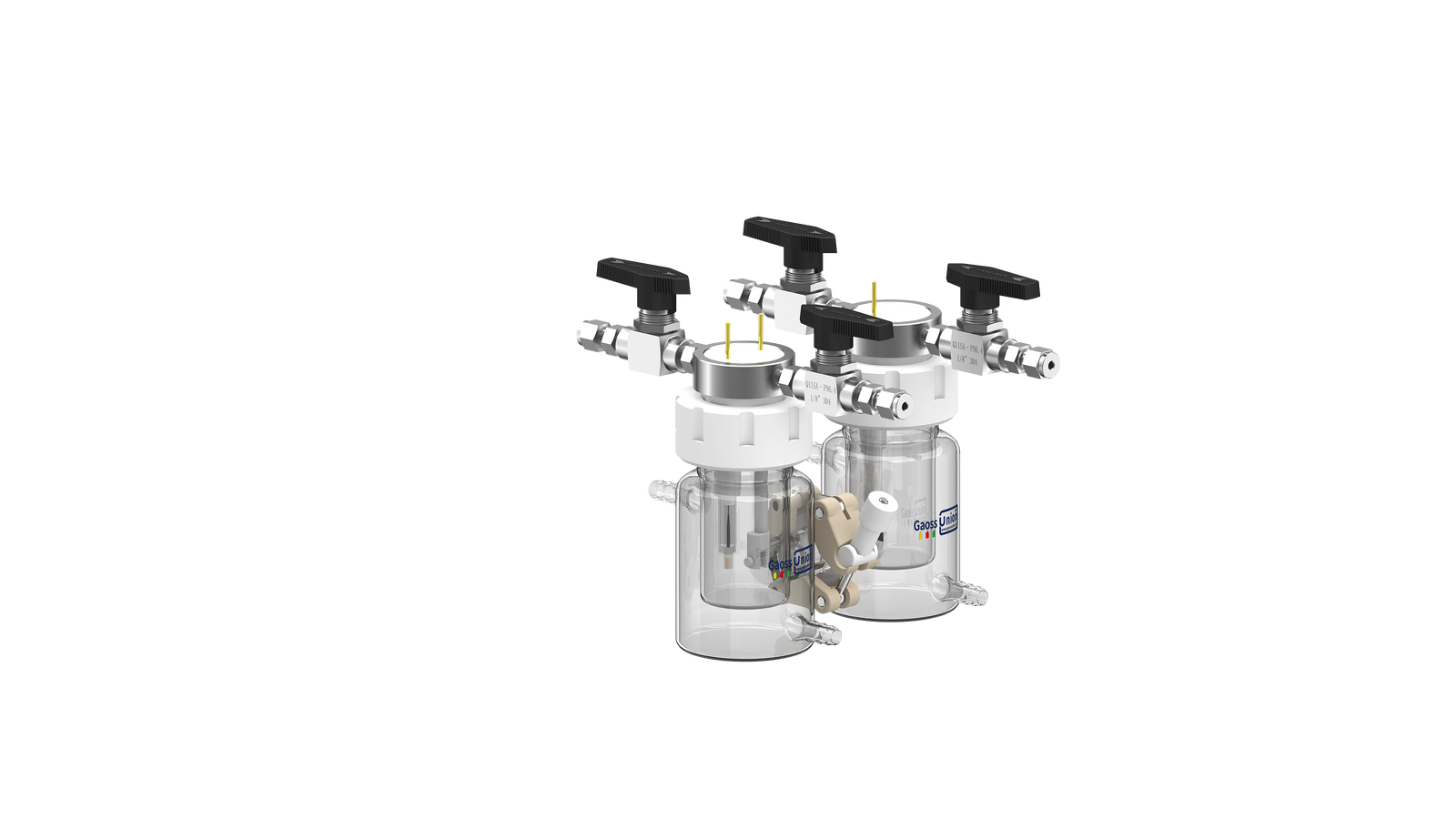

GaussUnion 2H Type Replaceable Membrane Electrolytic Cell (Absolutely Sealed) C007-2

Model: C007-2

• Cell Material: High purity borosilicate glass.
• The electrolytic cell achieves atmospheric protection by adding valves and an aeration component.
• This electrolytic cell is an absolutely sealed system. The glass sealing part of the electrolytic cell adopts an external threaded design, and the inner core uses 360-degree rotation of polytetrafluoroethylene for precise electrode alignment through tightening with a polyoxymethylene (POM) outer cover for sealing. It can be subjected to vacuum (less than -100 kPa) and slight pressurization, with a maximum pressure not exceeding 0.5 MPa for safety. The cathode chamber and anode chamber are isolated by an ion exchange membrane, and the two chambers are sealed and linked using a chain for easy membrane replacement. The reference electrode and working electrode are in the same chamber, effectively reducing the resistivity (R drop).
• The electrode section of the electrolytic cell achieves internal insertion and extraction of electrodes through a headphone jack on the cover, ensuring absolute sealing in the electrode system. Electrodes must be dimensionally compatible with the cell. The electrodes need to be purchased separately.
• The single-layer cell of this electrolytic cell has a special design to efficiently eliminate solution dead volume.
• The electrolytic cell is equipped with an aeration device that allows ventilation below the liquid level. Different shapes of aeration devices are chosen based on the experiment, such as using a straight-type bubbler for carbon reduction or an L-shaped bubbler for nitrogen reduction.
• The jacketed cell allows circulating temperature-controlled water to achieve a constant temperature effect in the measured solution.
