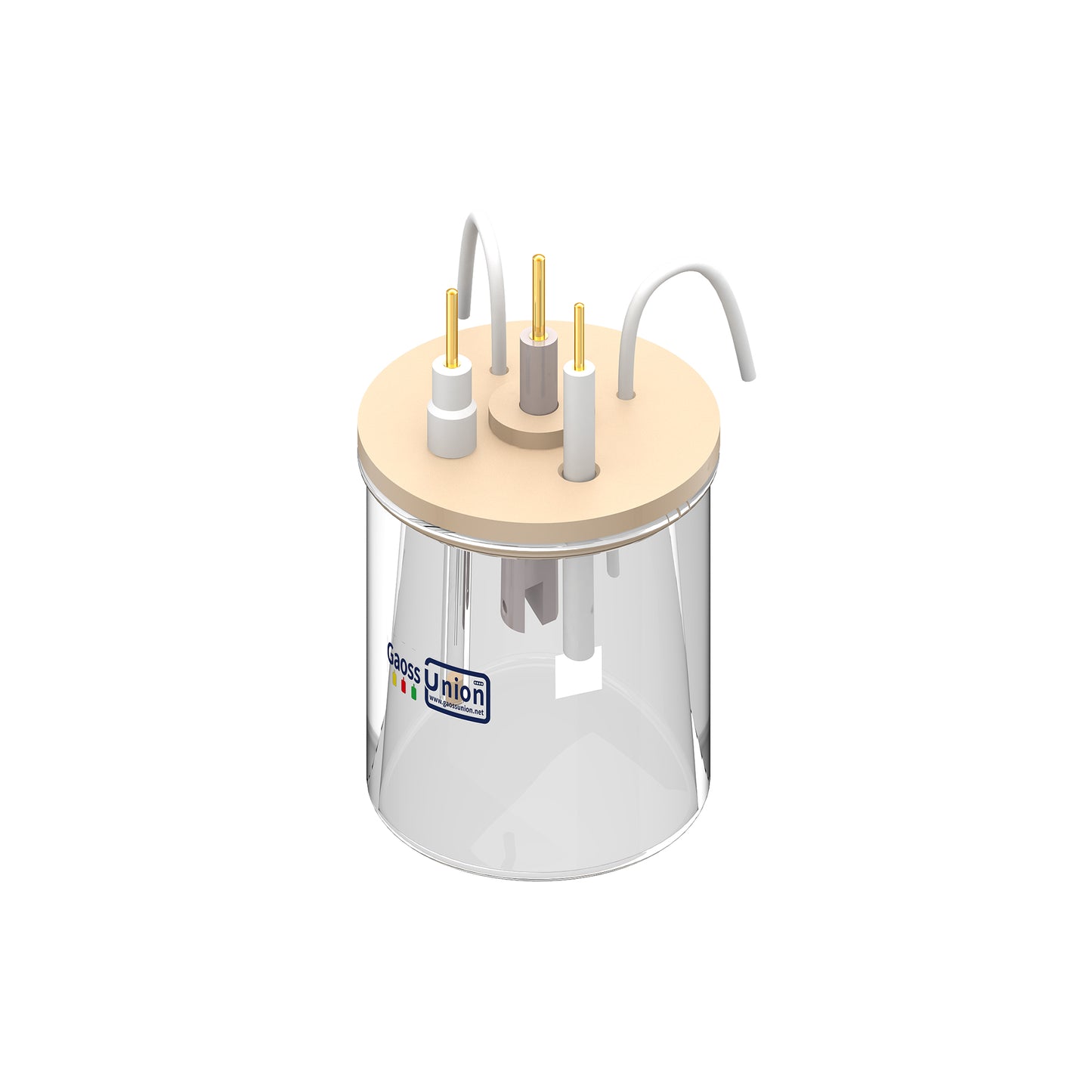

GaossUnion Variable Diameter Electrolytic Cell (non-sealed) C001

Cell Material: High purity borosilicate glass.

Commonly used in three-electrode systems, with a volume ranging from 30ml to 500ml, customizable based on requirements.

The single-cell opening of the electrolytic cell employs a flanging design to enhance stability.

The electrolytic cell is equipped with variable diameter electrode holes (diameters: 6.5mm, 8.5mm, 10.5mm, 12.5mm) for easy matching with electrodes of different diameters.

Additional features include the option to add a salt bridge or gas vent as needed.

Inlet and outlet gas ports can be added to the electrolytic cell for atmospheric control based on experimental requirements.

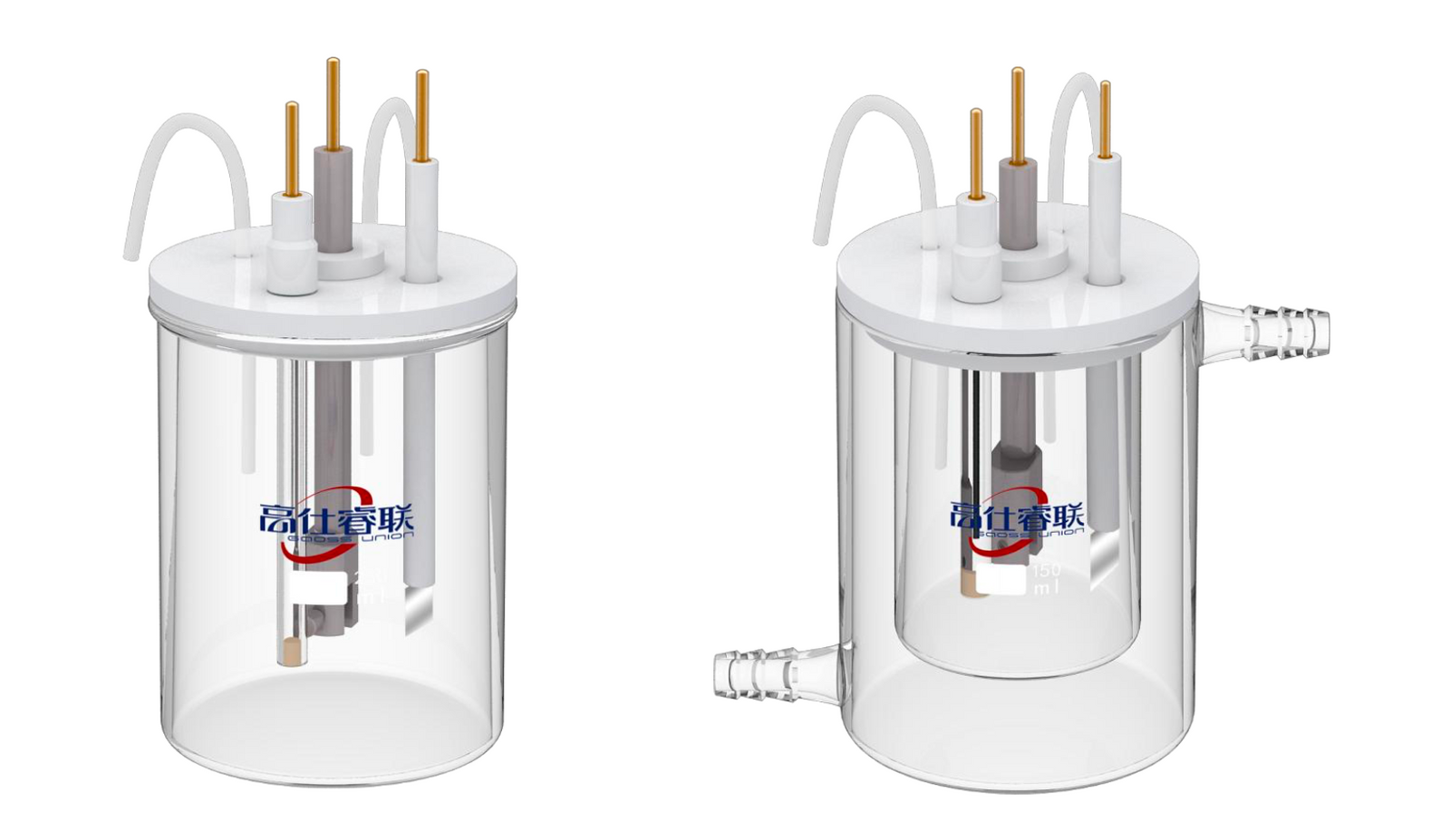

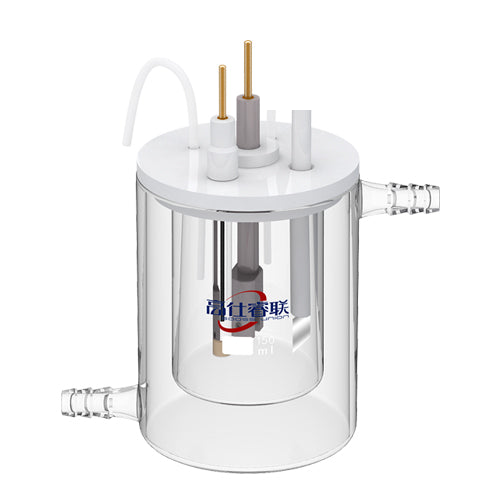

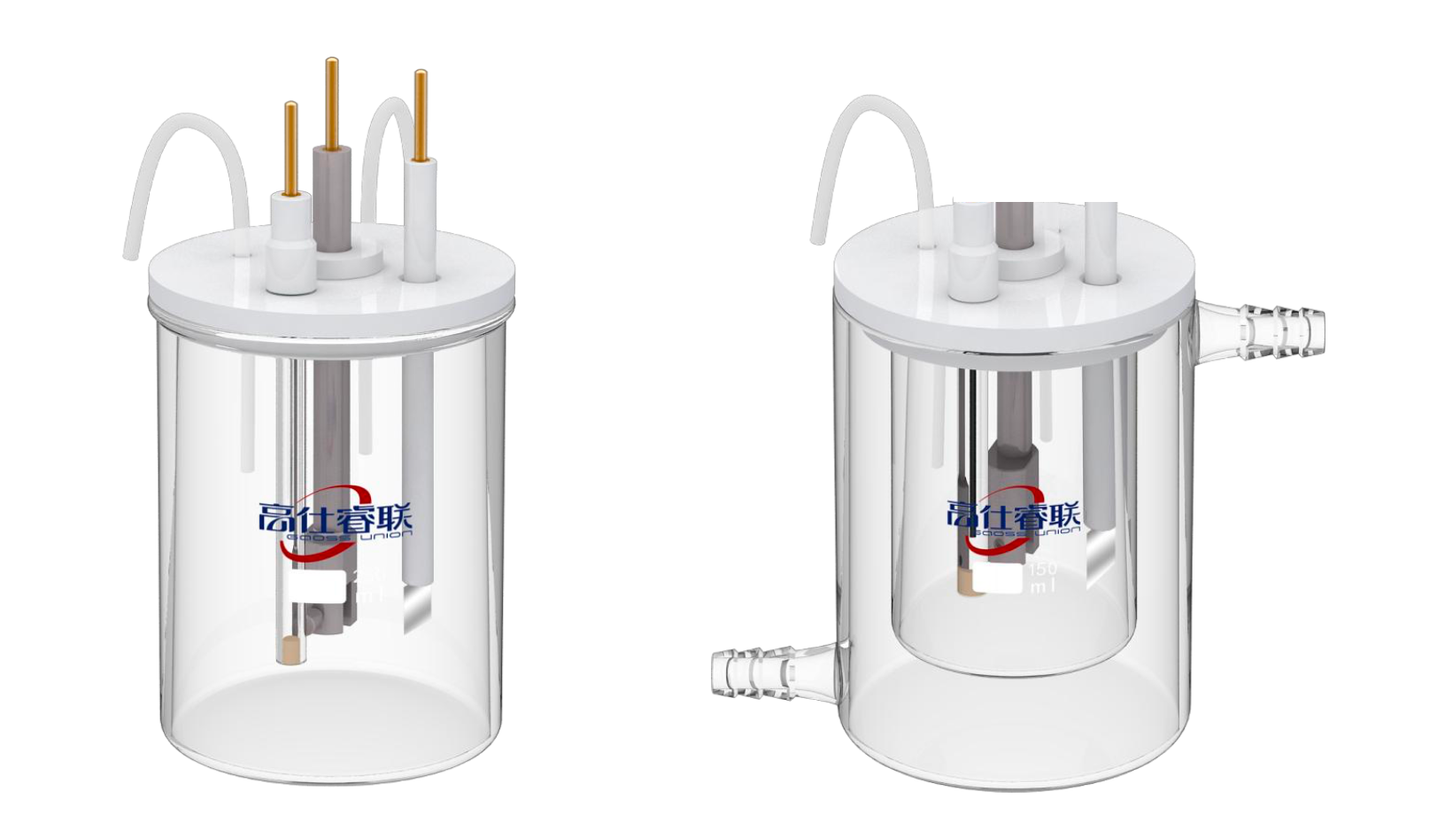

Available in single-layer and jacketed-layer configurations, with the jacketed-layer version incorporating a constant temperature water bath function. The constant temperature effect is achieved by continuously circulating temperature-controlled water in the jacketed layer of the electrolytic cell.

The electrodes of the electrolytic cell need to be purchased separately.
