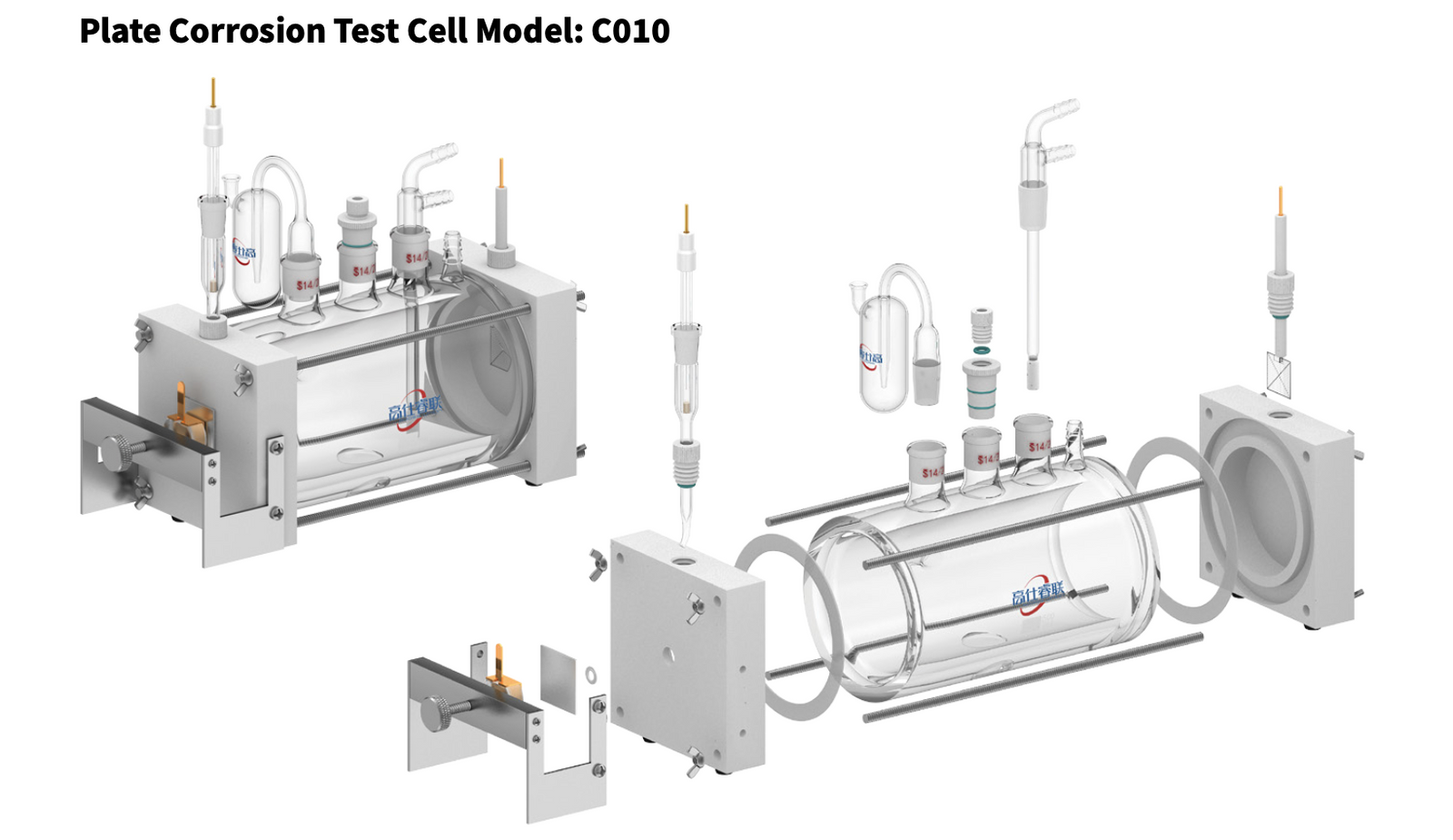

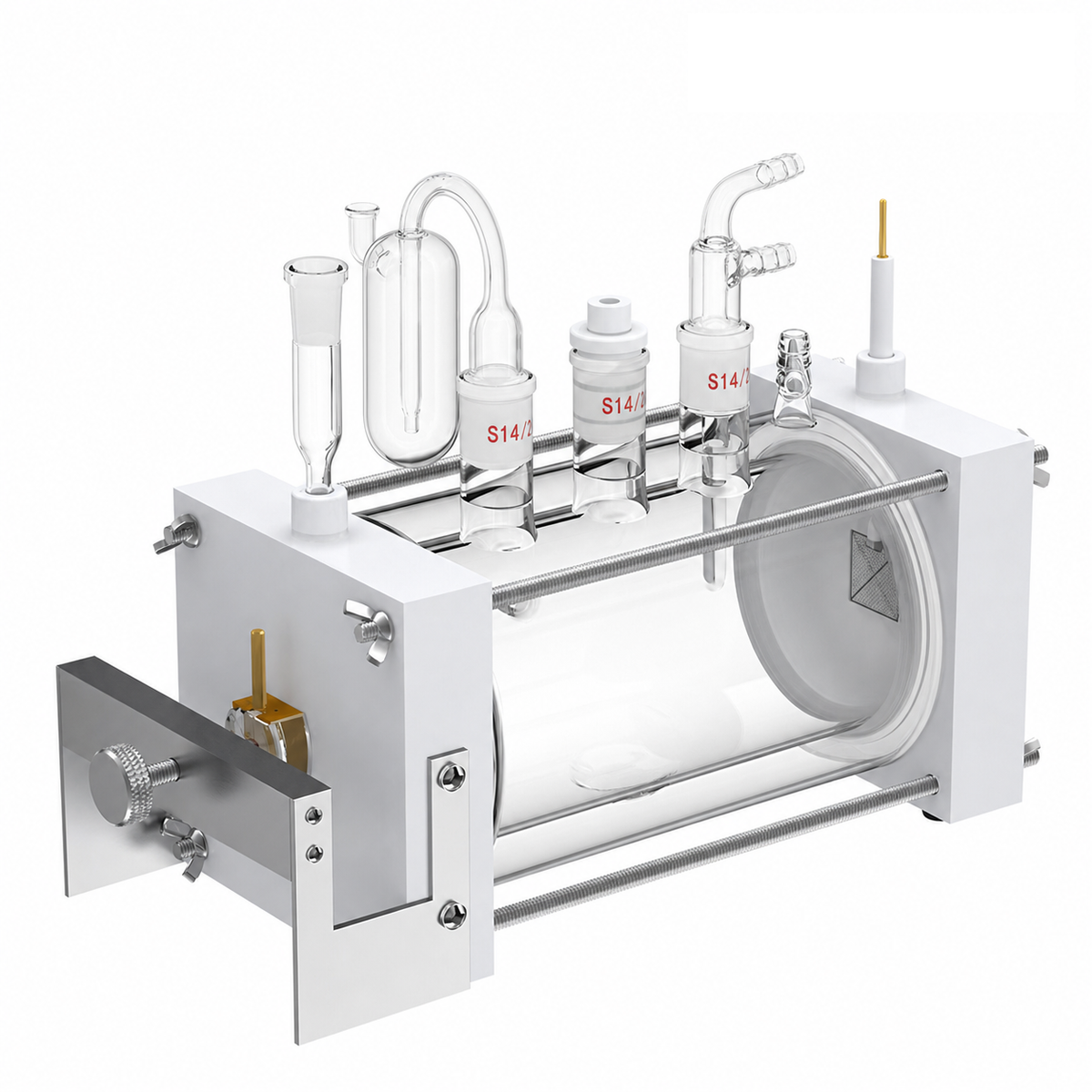

GaossUnion Plate Corrosion Test Electrolytic Cell Series C010

Cell Material: High purity borosilicate glass.

The working electrode of the electrolytic cell is a sheet-shaped working electrode, and the sample installation is simple and convenient, easy to disassemble, and easy to handle.

The side of the electrolytic cell has a circular hole with a fixed area of 1cm² (the required size can be customized according to requirements), and an O-ring that can be sealed.

The conductive link of the working electrode of the electrolytic cell is made of gold-plated copper sheet, and the principle of extruding the sample sheet is used for conducting the sample sheet. The gold-plated copper sheet has good corrosion resistance and aesthetics.

The electrolytic cell sample holder is made of corrosion resistant 316 stainless steel.

To achieve a better experimental diffusion effect, the electrolytic cell has added a stirring bar under the cylindrical cell body, just place the stirring bar in the cell, and place the cell body on the magnetic stirrer for magnetic stirring.

The auxiliary electrode (counter electrode) of the electrolytic cell is equipped with 20*20mm platinum mesh electrodes. The electrodes of the electrolytic cell need to be purchased separately.

The electrolytic cell is equipped with a special salt bridge for the reference electrode. If the corrosion test needs to avoid chloride ions, can add saturated potassium nitrate solution to the salt bridge instead.
